How to Choose the Right Current Transformer for Your Electrical Needs?
Choosing the right Current Transformer (CT) is crucial for any electrical application. Experts in the field emphasize this importance. John Smith, a well-known electrical engineer, once stated, "Selecting the correct Current Transformer can significantly impact your system’s efficiency."
Current Transformers play a vital role in measuring and monitoring electrical systems. They are essential for both safety and performance. When selecting a Current Transformer, factors like accuracy, burden rating, and current ratio must be considered. These details can make a significant difference. The right CT will improve system reliability and reduce potential risks.
However, many people overlook these critical points. A common mistake is focusing solely on price rather than quality and specifications. This can lead to poor performance and unexpected failures. It’s essential to balance cost with reliability. Reassessing your options and seeking expert advice can provide clarity. In the end, ensuring that you choose the right Current Transformer enhances your electrical setup and performance.
Understanding Current Transformers and Their Functionality in Electrical Systems
Current transformers (CTs) play a crucial role in electrical systems, converting high current levels into manageable outputs. This functionality is essential for monitoring and protecting electrical circuits.
According to recent industry reports, over 60% of electrical faults can be traced back to issues in current measurement. Properly selected CTs can significantly reduce these risks.
Understanding the specifications of CTs is vital. They come in various types, including split-core and solid-core models. Each design serves different setups. For instance, solid-core CTs are ideal for high-voltage applications. Meanwhile, split-core versions offer easier installation and flexibility. A study by the Institute of Electrical and Electronics Engineers highlights that using the wrong type can lead to inefficiencies and increased operational costs by up to 20%.
Choosing the right CT requires careful consideration of the application it will serve. Load requirements, voltage levels, and installation conditions are all factors to weigh. Professionals often reflect on their specific needs. More attention to detail during selection can lead to enhanced performance. The ongoing evolution of technologies promises advancements, yet many challenges remain in implementing these devices effectively.
Key Specifications to Consider When Selecting a Current Transformer
When selecting a current transformer (CT), consider key specifications that will meet your electrical requirements. Accuracy class is crucial. The class defines how well the CT can replicate the primary current. For instance, a Class 0.5 CT provides accuracy within 0.5% at rated conditions, essential for precise metering and protection systems. Fluctuations in load or temperature can affect performance, making this specification vital for reliability.
Another significant factor is the burden rating. This defines the load that the CT can support without losing accuracy. Typically, a lower burden allows for better performance. An inappropriate burden can lead to errors in measurements, impacting overall efficiency. According to industry reports, a CT with a burden rating of 5 VA ensures enough capacity for most applications, providing a balance between safety and functionality.
It’s also important to consider the insulation level and current rating. An insulated transformer rated for higher voltages can prevent breakdown in critical environments. Keep in mind that environmental factors, such as moisture and pollutants, can affect the lifespan of the CT. Regular checks and adherence to specifications are essential for maintaining optimal operation, underscoring the need for ongoing evaluation and adaptation in your electrical systems.
Evaluating Measurement Accuracy and Ratio Error in Transformers

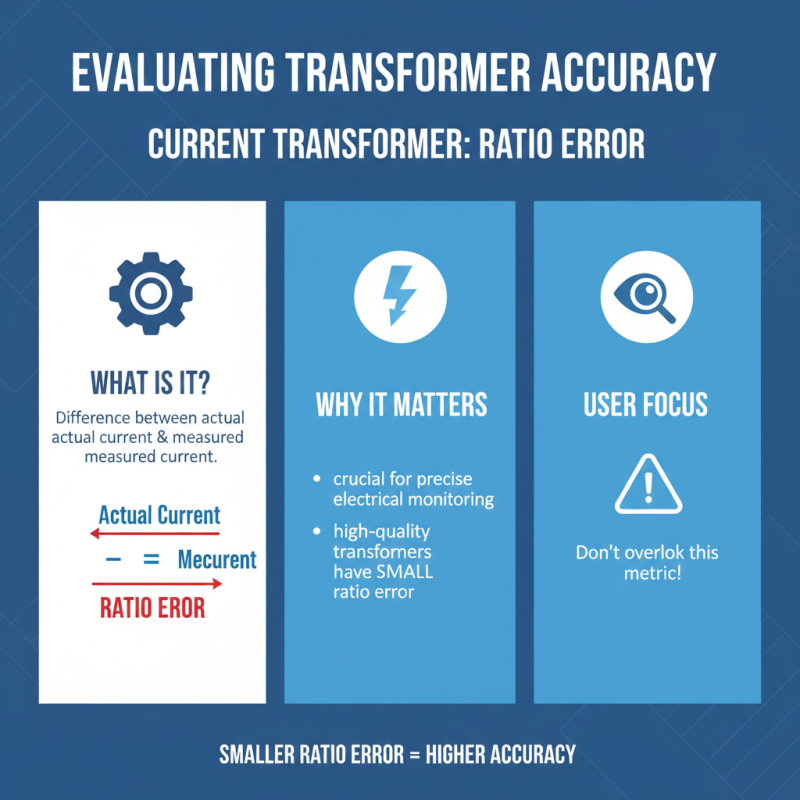

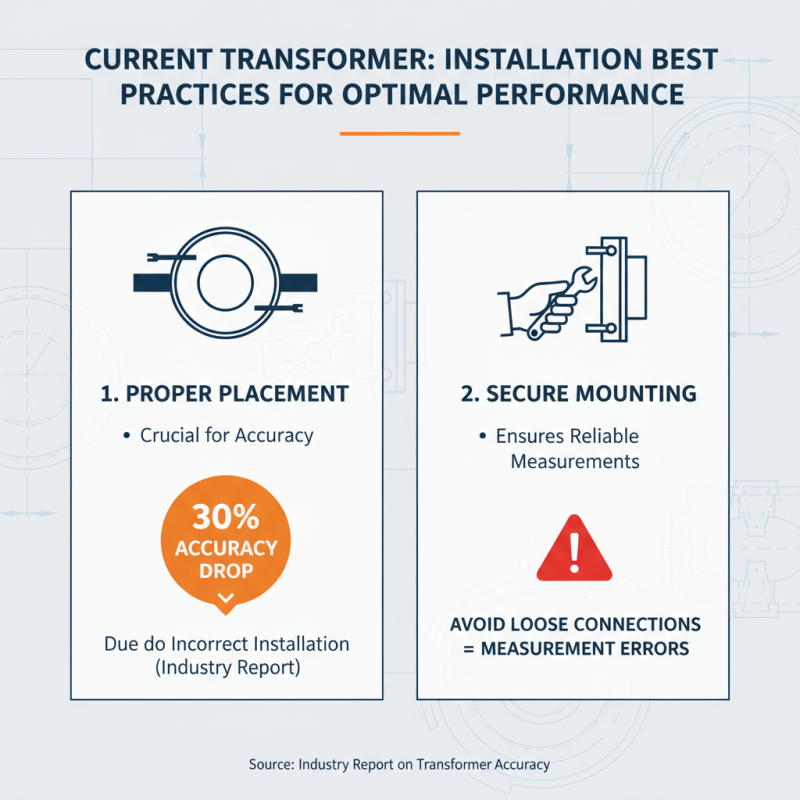

When selecting a current transformer, measurement accuracy is crucial. This accuracy is often defined through ratio error, which is the difference between the actual current and the measured current. A small ratio error indicates a high-quality transformer, essential for precise electrical monitoring. Many users overlook the importance of this metric.
Evaluation should involve testing transformers under different load conditions. Ageing and environmental factors can also affect performance. Regular assessments can help detect potential errors before they impact system efficiency. It's common for users to notice discrepancies only when issues arise. Establishing a routine evaluation process could mitigate surprises later on.
Ultimately, understanding the metrics behind transformers enables better choices. Users should seek to balance accuracy with both operational demands and cost. Each transformer has a specified ratio error, and it's vital to consider this figure relative to your specific application. It’s a reminder that no option is perfect. Continuous learning and adaptation are key to electrical success.
Assessing Current Transformer Ratings for Load and Application Types
Choosing the right current transformer is essential for effective electrical system management. When assessing current transformer ratings, the load and application type should be your primary focus. Different electrical environments can cause varying levels of current. Understanding how your specific application interacts with these electrical systems will help you make informed choices.
Consider the maximum load you expect the transformer to handle. If your transformer is under-rated, it may lead to overheating or failure during peak loads. For industrial applications, the demands can fluctuate significantly. It’s vital to choose a transformer that can accommodate these variations without compromising performance. Additionally, pay attention to the burden rating. It indicates how much current it can safely measure without distortion.
Reflection is necessary here. Many professionals overlook application type when selecting a transformer. Each application may have unique requirements, and failing to consider these can lead to inefficiencies. For example, HVAC systems may often require different transformers than power distribution units. Therefore, understanding your operational needs and the specific characteristics of your application is crucial for long-term reliability and safety.
How to Choose the Right Current Transformer for Your Electrical Needs?
| Application Type |
CT Ratio |
Burden Rating (VA) |
Insulation Level (kV) |
Accuracy Class |
| Protection Systems |
100:5 |
15 |
0.72 |
Class 5P |
| Metering Applications |
200:1 |
10 |
1.2 |
Class 0.5 |
| Industrial Applications |
50:5 |
20 |
0.3 |
Class 1 |
| Renewable Energy Systems |
150:5 |
5 |
0.6 |
Class 0.2 |
| HVDC Applications |
300:1 |
30 |
1.0 |
Class 0.5 |
