How to Choose the Right Wire Terminal Block for Your Electrical Projects?
When embarking on electrical projects, selecting the appropriate Wire Terminal Block can seem daunting. Renowned expert in the electrical field, John Smith, states, “The right terminal block can make or break your project.” This emphasis highlights the critical role of Wire Terminal Blocks in both safety and functionality.
Choosing the right Wire Terminal Block involves understanding various factors. These can include current ratings, voltage ratings, and environmental conditions. Many overlook the importance of proper sizing and compatibility with wires. Missteps in this selection can lead to failures or even hazards in electrical systems. A comprehensive understanding is essential.
Furthermore, it often requires a balance between quality and cost. Investing in a high-quality Wire Terminal Block may reduce future maintenance needs. However, each project can present unique challenges, and not every choice is straightforward. Reflection and careful consideration are fundamental in the decision-making process, as selections must align with specific project requirements.

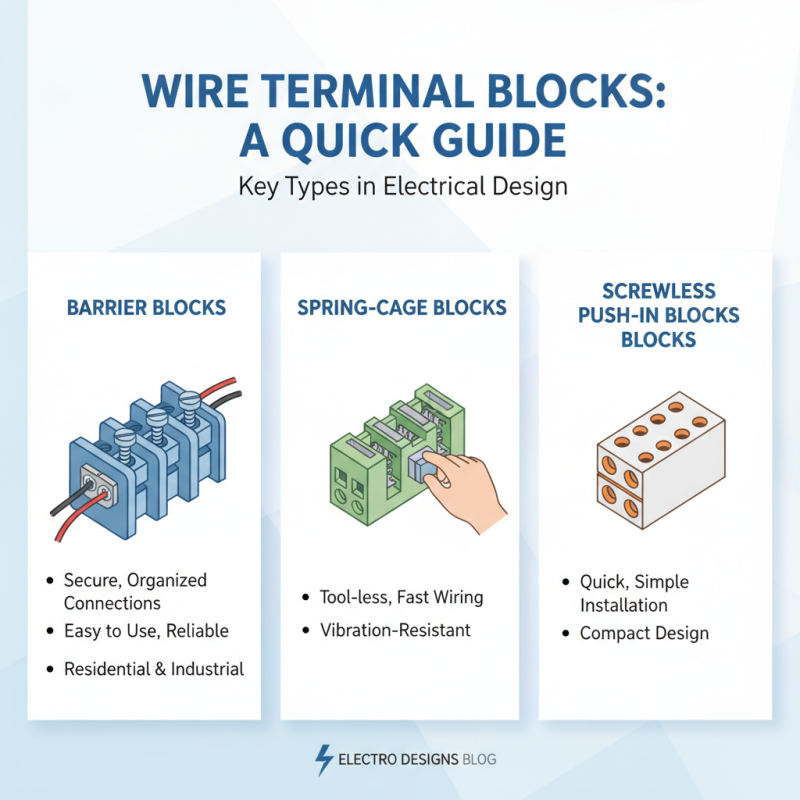

Understanding the Different Types of Wire Terminal Blocks in Electrical Design
When selecting wire terminal blocks for electrical design, understanding their types is essential. There are several categories, each serving a specific purpose. For instance, barrier terminal blocks provide a secure and organized way to connect wires. They are known for their ease of use and reliability. You can find them in various applications, from homes to industrial settings.
Another type is insulated terminal blocks, which provide added safety. They protect against electrical shorts and create a safer working environment. Choosing the right one depends on the project’s specific needs. It’s not uncommon for designers to overlook critical factors, leading to potential hazards.
Moreover, there are spring clamp terminal blocks, which offer quick connections and disconnections. These are ideal for temporary setups. However, they might not be suitable for all environments. Evaluating the project's demands can help in making a sound decision. Consider factors like size, insulation, and application type. Each detail matters in ensuring optimal performance and safety.

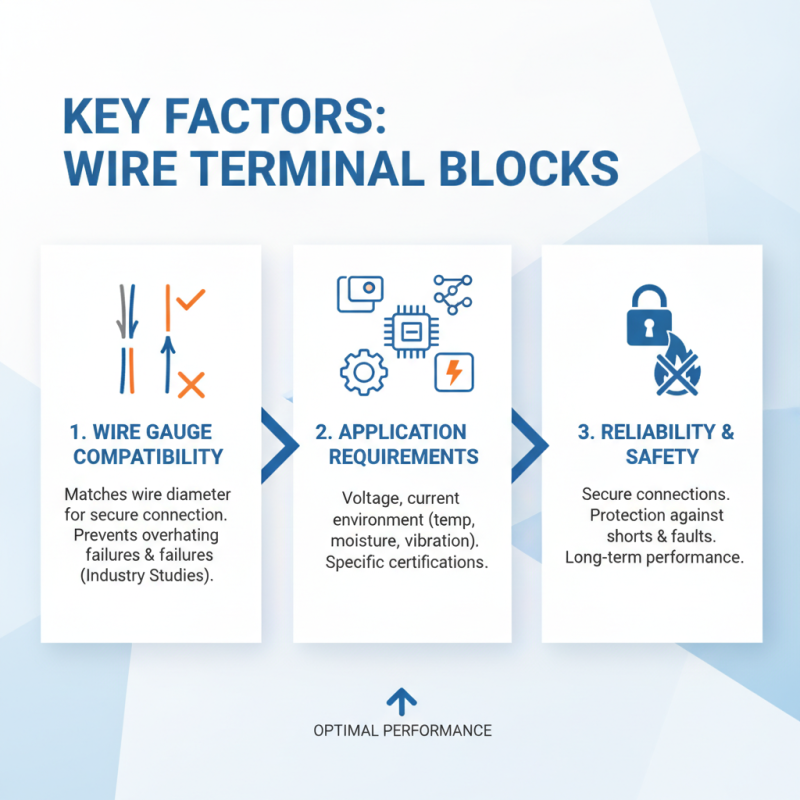

Key Factors to Consider When Selecting Wire Terminal Blocks for Projects
When selecting wire terminal blocks, several key factors must be evaluated to ensure optimal performance. Compatibility with the wire gauge significantly impacts reliability. According to industry studies, mismatched gauges can lead to overheating, resulting in potential failure. A thorough understanding of the application requirements can assist in avoiding these issues.
Material selection is another critical aspect. Terminal blocks are often made from thermoplastic or metal. Reports indicate that thermoplastic options provide better insulation and moisture resistance, making them ideal for harsh environments. However, metal blocks offer superior conductivity. Choosing the right material will depend on specific project needs.
Lastly, consider the configuration and layout. A well-organized arrangement minimizes clutter, making troubleshooting easier. Research shows that messy installations can lead to miswiring and other errors, impacting project success. Striking a balance between space efficiency and accessibility may demand thoughtful planning. Understanding these factors will lead to better decisions, enhancing both safety and efficiency in electrical projects.
Evaluating Electrical Ratings: Amperage, Voltage, and Temperature Considerations
When selecting a wire terminal block, understanding electrical ratings is crucial. Amperage, voltage, and temperature are key factors that can affect performance and safety. According to the National Electrical Manufacturers Association (NEMA) standards, wire terminals must endure specific amperage levels for reliable operation. For example, using a terminal rated for 15 amps on a circuit carrying 20 amps can lead to overheating and failure.
Voltage ratings also play a vital role. Each terminal block has a maximum voltage level it can safely handle. Operating above this threshold risks arcing and electrical fires. The International Electrotechnical Commission (IEC) suggests matching the terminal voltage with your application needs for optimal safety.
Temperature ratings further influence the selection. High temperatures can degrade materials, leading to potential failure. A study by the Institute of Electrical and Electronics Engineers (IEEE) shows that terminals exposed to excess heat can lose up to 30% of their conductive efficiency over time.
These considerations may seem straightforward, but many projects overlook them. Users might default to lower-rated components for cost-saving, which can lead to significant issues down the line. Pragmatic choices, grounded in proper electrical ratings, can make a substantial difference. Pay attention to the details, and be mindful of the environmental factors affecting terminal blocks.
Assessing Material Compatibility: Insulation and Conductivity Requirements
When selecting a wire terminal block, considering material compatibility is crucial. The insulation material impacts not only longevity but also safety. Common insulators include PVC, nylon, and thermoplastic elastomers. Each offers unique properties. For example, PVC is cost-effective but may not tolerate high temperatures well. On the other hand, nylon can withstand higher heat but has a higher price point. Evaluate your project's specific temperature requirements carefully.
Conductivity is another integral factor. Copper and aluminum are the primary conductive materials used in terminal blocks. Copper has superior conductivity, leading to less energy loss. However, aluminum is significantly lighter and often less expensive. The choice often leads to a trade-off between performance and cost. A mismatch between conductor and terminal block can lead to poor connections or increased resistance. Always verify that your selection meets both the voltage ratings and application needs of your project.
Additionally, keep in mind the environment where the terminal block will be used. Moist, humid, or corrosive environments may necessitate special coatings or materials. You might not always choose the most expensive option, but ensuring compatibility remains key to a functional and reliable system. Reflect on these factors during your selection to avoid costly mistakes.
How to Choose the Right Wire Terminal Block for Your Electrical Projects?
This chart illustrates the thermal conductivity of various materials used in wire terminal blocks, which is essential for ensuring efficient electrical performance. Selecting the right material based on conductivity and insulation properties is crucial for the success of electrical projects.
Installation and Safety Standards for Wire Terminal Blocks in Electrical Systems
When selecting wire terminal blocks for electrical systems, safety standards are paramount. According to a report by the National Fire Protection Association (NFPA), improperly installed or faulty terminal blocks contribute to 20% of electrical fires. Therefore, adherence to installation and safety guidelines ensures better performance and minimizes risks.
Safe installation begins with understanding the ratings of the terminal block. Look for components that comply with NEC and IEC standards. These certifications ensure that the products can withstand voltage and current levels without failure. Additionally, you must consider the environmental factors such as temperature, humidity, and potential exposure to chemicals. These aspects can affect the longevity of the terminal block and the overall electrical system.
**Tips**: Always double-check the torque settings for connections. Loose connections can lead to overheating. Use insulated tools to reduce risks while working. Pay attention to wire gauge. It is essential to match the terminal block’s capacity with the wiring.
Moreover, be cautious about overloading. Many users unknowingly exceed the current ratings, risking system failure and potential hazards. Regular inspections of terminal blocks can identify wear and tear early on, preventing future issues. Maintaining your system helps ensure safety and reliability.
How to Choose the Right Wire Terminal Block for Your Electrical Projects?
| Type |
Material |
Current Rating (Amps) |
Voltage Rating (Volts) |
Usage |
Safety Standard |
| Screw Terminal Block |
Copper |
15 |
250 |
Low voltage applications |
UL, CSA |
| Push-In Terminal Block |
Brass |
20 |
320 |
Industrial automation |
IEC, ISO |
| Insulated Terminal Block |
Nylon |
10 |
600 |
Home electrical wiring |
NFPA, NEC |
| Spring Terminal Block |
Aluminum |
30 |
400 |
High power applications |
VDE, CE |
| PCB Terminal Block |
Phosphor Bronze |
5 |
100 |
Electronics and circuits |
RoHS, REACH |
