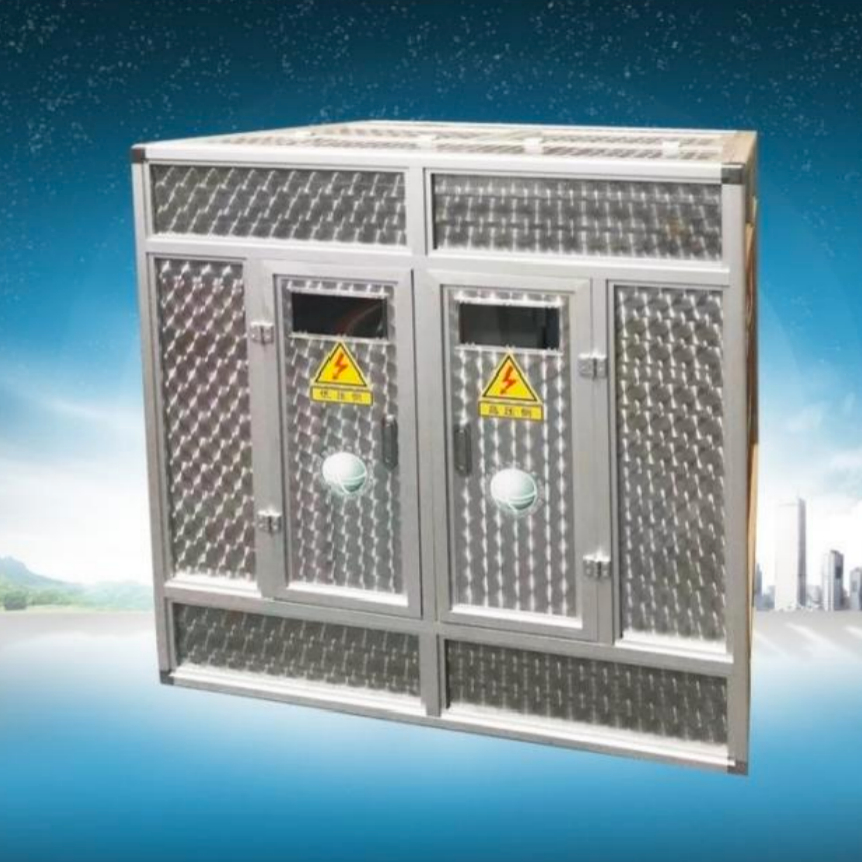

IP Aluminum Alloy Dry-Type Transformer
Product Application
Our company supplies various models of dry-type transformer housings, compatible with all types of transformers. Our practical aluminum alloy series features high-quality aluminum material and surface grinding treatment, resulting in a beautiful and durable product. We support customization to IP20/IP23/IP40 standard housings and various specifications of stainless steel housings. Our products comply with standards such as GB1094, IEC726, GB/T10228, and JB/T10088.

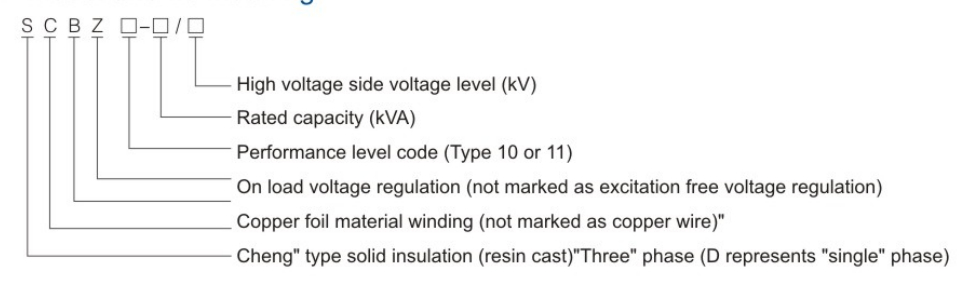

Model & Meaning
Product features
The SC (B) series dry-type transformers are energy-saving and environmentally friendly products developed by absorbing advanced foreign technologies:
1, The core uses high-quality cold-rolled silicon wafers (30ZH130) from Nippon Steel of Japan, processed with a stepped lamination process, resulting in lower no-load loss, current, and noise, ensuring safety and reliability.
2, The coils use Swiss Ciba F/H grade resin, which is flame-retardant and produces no toxic gases. It offers excellent insulation, moisture resistance, impact resistance, and short-circuit withstand performance, allowing normal operation in 100% humidity environments and enabling restarting without drying after production shutdowns.
3, Utilizing German high-vacuum casting technology, the coils are free of air holes, have a smooth surface, and low partial discharge.
4, Equipped with a low-noise, energy-saving amplitude-type cooling fan, it enhances short-term overload capacity. An optional intelligent temperature protection controller (PCT sensor + LED display) supports automatic alarm/tripping and fan start/stop, offering high accuracy and stability, and a computer interface is available.
5, Equipped with a low-noise, energy-saving amplitude-type cooling fan, it enhances short-term overload capacity. An optional intelligent temperature protection controller (PCT sensor + LED display) supports automatic alarm/tripping and fan start/stop, offering high accuracy and stability, and a computer interface is available.
10kV Level SCB10, SCBZ10 Series Resin Cast Dry-Type Transformer
| Rated capacity (KVA) | Voltage combination | Connection group Label | No load loss (KW) | Load loss (KW) | No load current (%) | Short-circui impedance (%) | Insulation Class | weight (kg) | Sound level (dB) | ||
| high voltage (KV) | High voltage tapping range | Low voltage (KV) | |||||||||
| 30 | 6
6.3 6.6 10 10.5 11 |
±5% and ±2×2.5% | 0.4 | Dyn0 and Dyn11 | 190 | 710 | 2.3 | 4.0 | F | 440/800 | 41 |
| 50 | 270 | 1000 | 2.1 | 480/840 | 41 | ||||||
| 80 | 370 | 1380 | 1.8 | 700/1060 | 41 | ||||||
| 100 | 400 | 1570 | 1.0 | 800/1160 | 41 | ||||||
| 125 | 470 | 1850 | 1.0 | 860/1220 | 41 | ||||||
| 160 | 540 | 2130 | 0.8 | 1000/1360 | 43 | ||||||
| 200 | 620 | 2530 | 0.8 | 1170/1530 | 43 | ||||||
| 250 | 720 | 2760 | 0.8 | 1300/1660 | 43 | ||||||
| 315 | 880 | 3470 | 0.7 | 1600/1960 | 44 | ||||||
| 400 | 980 | 3990 | 0.7 | 1900/2260 | 44 | ||||||
| 500 | 1160 | 4880 | 0.7 | 2120/2480 | 44 | ||||||
| 630 | 1340 | 5880 | 0.6 | 2660/3020 | 44 | ||||||
| 630 | 1300 | 5960 | 0.6 | 6 | 2540/2900 | 45 | |||||
| 800 | 1520 | 6960 | 0.6 | 2860/3220 | 45 | ||||||
| 1000 | 1770 | 8130 | 0.5 | 3380/3740 | 47 | ||||||
| 1250 | 2090 | 9690 | 0.5 | 4210/4570 | 47 | ||||||
| 1600 | 2450 | 11730 | 0.4 | 4960/5320 | 49 | ||||||
| 2000 | 3050 | 14450 | 0.4 | 5740/6100 | 50 | ||||||
| 2500 | 3600 | 17170 | 0.4 | 6160/6420 | 51 | ||||||
| 3150 | 4300 | 20600 | 0.3 | 6760/7120 | 52 | ||||||
| 1600 | 2450 | 12960 | 0.4 | 8 | 5200/5590 | 49 | |||||
| 2000 | 3050 | 15960 | 0.4 | 6020/6400 | 50 | ||||||
| 2500 | 3600 | 18890 | 0.4 | 6660/6930 | 51 | ||||||
| 3150 | 4300 | 22500 | 0.3 | 7210/7580 | 52 | ||||||
