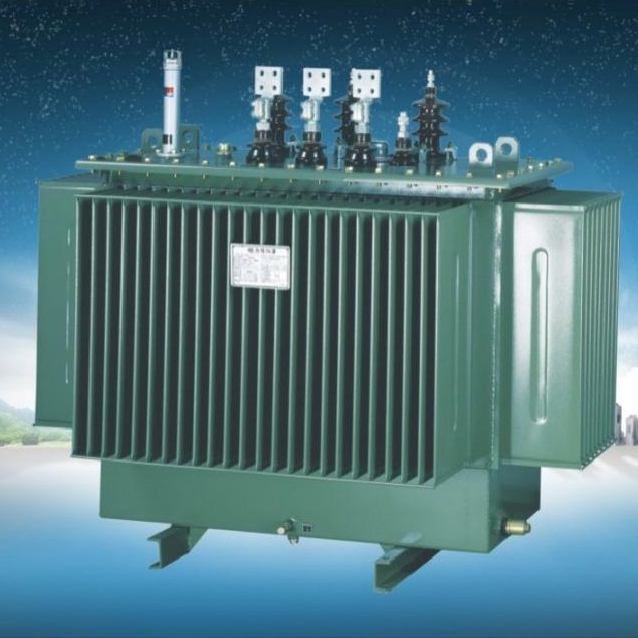

S11-M Oil Immersed Power Transformers

Usage conditions
Place of use: indoor

Environmental temperature:
Maximum temperature:+40℃
Minimum temperature:-30℃;
Maximum annual average temperature:+20℃
Maximum daily average temperature:+30℃

Frequency: 50Hz
Altitude: Not exceeding 1000m (additional design may be required if altude exceeds 1000m)

    Product Application

    S(Z)11 and S(Z)11-M series oilimmersed transformers produced by the company are a new generation of energy-saving products, widely used in the power system of 10kV and below lines, for transmission, transformation, distribution, power stations, power, lighting, and high-voltage/low-voltage prefabricated substations.

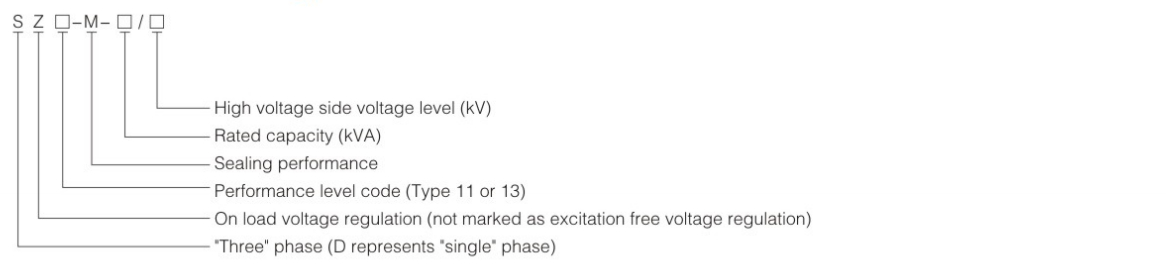

    Model and Its Meaning

    S11-M Oil Immersed Power Transformers (2)

    Product execution standards

    GB 1094.1 "Power Transformers Part 1 General Principles'
    GB 1094.2 "Power Transformers-Part 2:Temperature Fise"
    GB 1094.3 "Power Transformers-Part 3:Insulation Levels, Insulation Tests, and External Insulation Air Clearances'
    GB/T 6451 Technical parameters and requrements for three-phase oil immersed power transformers'JB/T 10088"Sound Level of 6-220KV Transformers
    GBT 25446 'Technical parameters and requirements for oil immersed amorphous alloy iron core distribution transformers'

    Product features

    1.Adopting corrugated or plate type radiator oiltank, with a beautiful appearance.
    2.The use of a new hanging plate structure has solved the problem of the body being suspended.
    3.Transformer oil does not come into contact with the atmosphere, so it is not necesary to conduct regular oil sample tests (sealed).
    4.Equipped with self-locking anti loosening nuts, adopting a non hanging core structure, the body is closely matched with the oil tank, and can withstand transportation vibrations and bumps.
    5.Ripple plates not only have coling function, but also have "breathing'function, and their elasticity can compensate for the oil volume changes caused by temperature changes.
    6.During the normal lifespan, there is no need to change oil, which improves the safety and reliability of power grid operation.

    10KV Level s(Z)11、S(Z)11-M Series Oil immersed transformer technical parameter

    Pated capacity (KVA) Voitage combination Connechon group Label No load loss (KW) Load loss (KW) No load current (%) Shot-cicu imeance (%) weight On kad/off load (kg)
    hich woltage (K High woltage tapping range Low voltage (KV)
    30 6
    6.3
    10
    10.5
    11
    ±5% and ±2×2.5% ±4×2.5% 0.4 Dyno and Dyn11 100 630/600 1.5 4.0 295/495
    50 130 910/870 1.3 390/590
    63 150 1090/1040 1.2 450/650
    80 180 1310/1250 1.2 510/710
    100 200 1580/1500 1.1 550/750
    125 240 1890/1800 1.1 660/860
    160 280 2310/2200 10 760/960
    200 340 2730/2600 1.0 900/1100
    250 400 3200/3050 0.9 1090/1290
    315 480 3830/3650 0.9 1235/1435
    400 570 4520/4300 0.8 1510/1710
    500 680 5410/5150 0.8 1740/1940
    630 810 6200 0.6 4.5 2185/2385
    800 980 7500 0.6 2550/2750
    1000 1150 10300 0.6 2910/3110
    1250 1360 12000 0.5 3460/3660
    1600 1640 14500 0.5 4020/4220
    2000 1940 18300 0.4 5.0 5480/5680
    2500 2290 21200 0.4 6010/6300
    Note:Range of high-voltage tap changer for on load voltage regulationis±4×2.5%,

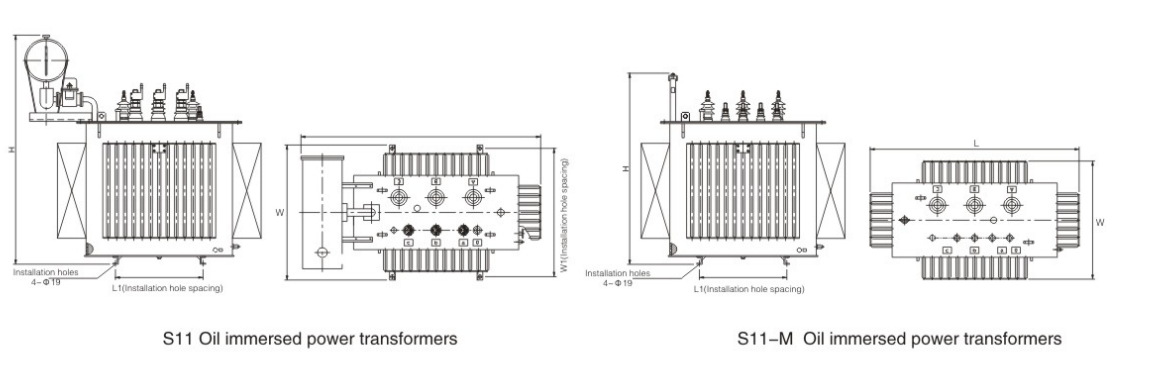

    10kV Leve IS11、S11-M Series Distribution transformer External dimensions

    S11-M Oil Immersed Power Transformers (3)

    10kV leve SCB10 Series Dry type transformer outline dimensions

    Rated capaciy (KVA) S11 Series S11-M Series Installation dimensions Installation holes φd
    L W H L w H L1 W1
    30 970 450 1085 1010 600 1000 400 400 φ14
    50 1115 500 1160 1085 655 1075 550 550 φ19
    63 1120 500 1200 1125 675 1115 550 550 φ19
    80 1145 500 1205 1155 675 1120 550 550 φ19
    100 1185 505 1215 1185 685 1130 550 550 φ19
    125 1220 600 1235 1215 705 1150 550 550 φ19
    160 1340 600 1275 1250 710 1190 550 550 φ19
    200 1375 600 1455 1265 720 1230 550 550 φ19
    250 1405 700 1525 1335 765 1300 550 550 φ19
    315 1500 700 1545 1405 795 1330 660 660 φ19
    400 1535 800 1615 1445 815 1390 660 660 φ19
    500 1620 800 1715 1515 860 1490 660 660 φ19
    630 1715 900 1835 1635 910 1550 660 660 φ19
    800 2035 900 1910 1715 980 1625 820 820 φ19
    1000 2090 925 1965 1765 1005 1680 820 820 φ19
    1250 1980 1660 2025 1430 1660 1740 820 820 φ19
    1600 2040 1715 2085 2000 1715 1800 820 820 φ19
    2000 2240 2040 2250 2240 2040 1965 820 820 φ19

    Ordering Notice

    (1)Product model, (2)rated capacity, (3)rated voltage,(4)number of phases, (5)frequency, (6)tapping range, (7)connection group number, (8)short-circuit impedance
