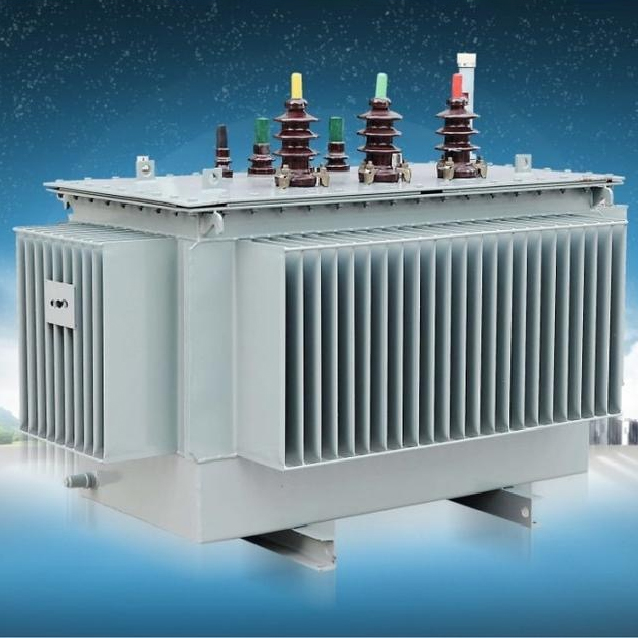

SCBJH15-Amorphous Alloy Oil Immersed Transformer
Product Application
Amorphous alloy oil immersed transformers can convert the grid voltage into the voltage required by the system or load,achieving the transmission and distribution of electrical energy. This transformer can replace transformers with silicon steel sheet iron cores and is widely used in outdoor distribution systems.
The large-scale operation of this product can achieve good energy-saving effects and reduce air pollution.This product is particularly suitable for areas with insuficient electricity, large load fluctuations, and dificulties in daily maintenance. Due to the fully sealed structure of the transformer, the insulation oil and insulation medium are not affected by atmospheric pollution,and can operate in humid environments, making it an ideal distribution equipment in urban and rural power distribution networks.

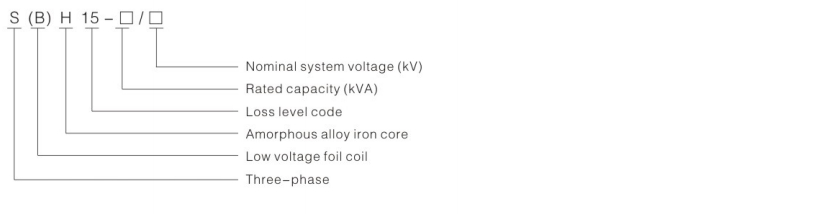

Model and Its Meaning
Structural characteristics
Transformer core is made of amorphous alloy strip,which reduces no-load losses by about 80%compared to S9 transformers. Copper foil coils are used for low voltage to enhance the transformer's ability to withstand short circuits;The connection group adopts Dynll to reduce the impact of harmonics on the power grid and improve power supply quality; The fully sealed structure of welding the fuel tank and tank
cover into one extends the service life and is maintenance free; The transformer adopts vacuum oil njection, which can completely eliminate bubbles in the coil and ensure stable insulation performance.
Product standards
GB1094.1 GB1094.2 JB/T 10088
GB1094.3 GB1094.5 GB/T 25289 GB/T 25446 GB/T 7595 JB/T 3837
The transformer products produced by our company all meet the latest versions of the above standards.
10kV LevelS(H)15、S(H)15-M Series Amorphous alloy oilimmersed transformertechnical parameter
| Rated capacity (KVA) | Voltage combination (kV) | Low voltage (kV) | Cornecien goup Label | loss(kW) | No load current (%) | Shart-ciout impedance (%) | Weight(kg) | External Dimensions (mm) L(length)kB (width)xH(height) |
Track gauge VerticalHorizontal | |||
| Empty load | load(75℃) | Body weight | Oil weight | Total weight | ||||||||
| 30 | 11
10.5 10 6.3 6 |
0.4 | Dyn11 | 0.033 | 0.63 | 0.63 | 4 | 240 | 80 | 410 | 920×600×980 | 400×550 |
| 50 | 0.043 | 0.91 | 0.91 | 310 | 110 | 510 | 950×620×1040 | 400×550 | ||||
| 63 | 0.050 | 1.09 | 1.2 | 350 | 125 | 570 | 990×670×1040 | 400×550 | ||||
| 80 | 0.060 | 1.31 | 1.1 | 410 | 135 | 630 | 1030×720×1040 | 400×660 | ||||
| 100 | 0.075 | 1.58 | 1.0 | 475 | 150 | 720 | 1060×770×1070 | 400×660 | ||||
| 125 | 0.085 | 1.89 | 0.9 | 550 | 170 | 830 | 1060×900×1070 | 400×660 | ||||
| 160 | 0.100 | 2.31 | 0.7 | 630 | 190 | 960 | 1060×930×1150 | 400×660 | ||||
| 200 | 0.120 | 2.73 | 0.7 | 670 | 210 | 1040 | 1100×930×1170 | 550×820 | ||||
| 250 | 0.140 | 3.2 | 0.7 | 750 | 240 | 1160 | 1180×1010×1180 | 550×820 | ||||
| 315 | 0.170 | 3.83 | 0.2 | 810 | 264 | 1240 | 1200×1010×1180 | 550×820 | ||||
| 400 | 0.200 | 4.52 | 0.5 | 860 | 290 | 1330 | 1270×1160×1200 | 550×820 | ||||
| 500 | 0.240 | 5.41 | 0.5 | 950 | 320 | 1460 | 1450×1240×1330 | 660×1070 | ||||
| 630 | 0.320 | 6.2 | 0.3 | 4.5 | 1120 | 380 | 1860 | 1450×1240×1330 | 820×1070 | |||
| 800 | 0.380 | 7.5 | 0.3 | 1340 | 410 | 2230 | 1520×1380×1460 | 820×1070 | ||||
| 1000 | 0.450 | 10.3 | 0.3 | 1620 | 540 | 2700 | 1720×1460×1510 | 820×1070 | ||||
| 1250 | 0.530 | 12.0 | 0.2 | 1900 | 640 | 3180 | 1780×1500×1690 | 820×1070 | ||||
| 1600 | 0.630 | 14.5 | 0.2 | 2560 | 680 | 4240 | 1880×1540×1970 | 820×1070 | ||||
| 2000 | 0.750 | 18.3 | 0.2 | 5 | 2900 | 980 | 4920 | 2080×1580×1970 | 820×1070 | |||
| 2500 | 0.900 | 21.2 | 0.2 | 3940 | 1160 | 6560 | 2350×1580×2020 | 820×1070 | ||||
