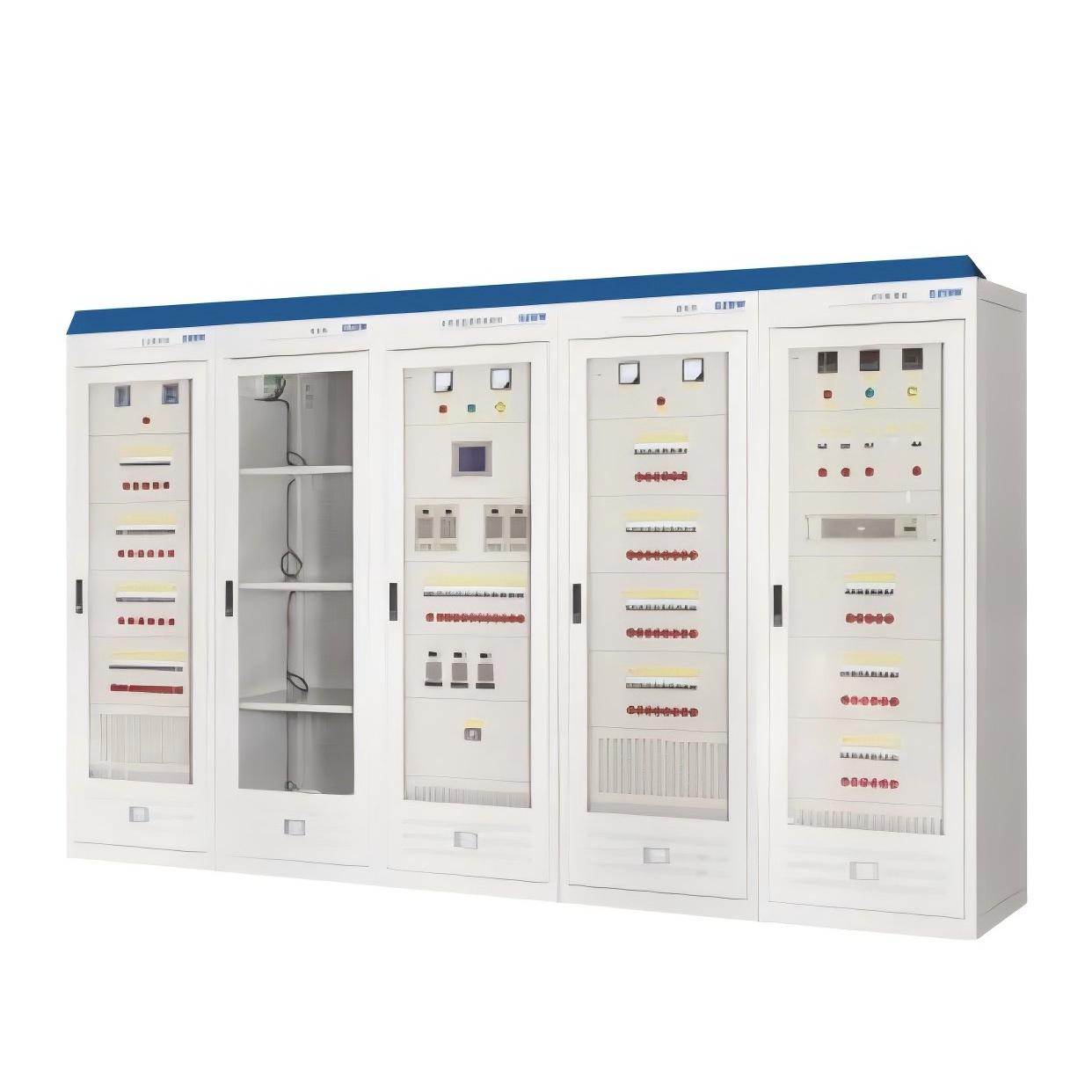

GZDW Powersupply cabinet

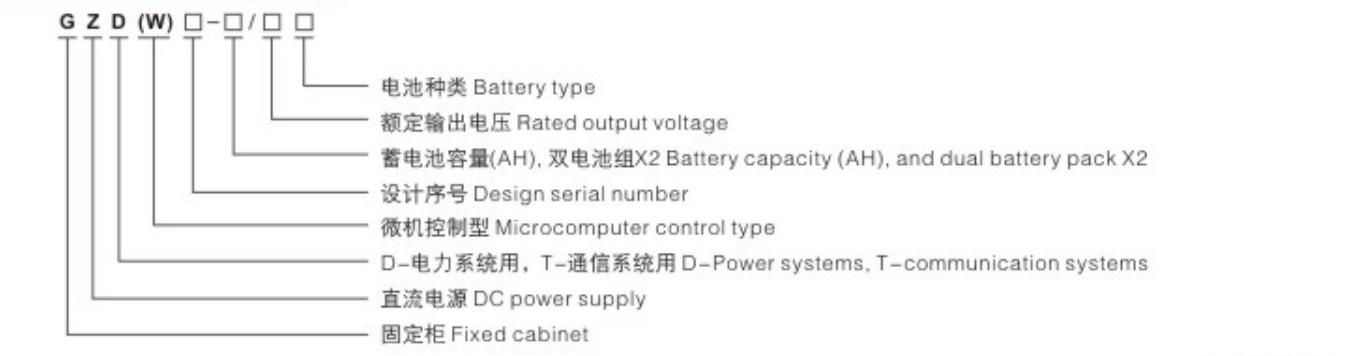

GZDW intelligent high frequency DC power supply cabinet is in accordance with the Ministry of Electric Power Order technicalconditions'DL/T459-2000°,and'JB/T5777-2000 power system DC power equipment general technical conditions and safetyrequirements,combined with years of development of DC power supply system And manufacturing experience and the developmentof a new generation of unattended power supply system.Module using the most advanced edge resonant soft-switching technology,can be hot plug,between modules and modules using isolation design,the module comes with CPU,the module all benchmarkcalibration and controlall 12-bitD/complete,to avoid the potentiometer inherent Of the temperature coefficient and the mechanicalcoefficient caused by the parameter drift.Another module built-in E2ROM,to ensure that the operating parameters of the modulewill never be lost.The monitoring system adopts the modular structure design,which is divided into central monitoring unit,DCmonitoring unit,and switch quantity monitoringunit.The battery inspection unit and the insulation detection unit can also be selectedaccording to the needs.Each unit is connected with the central main monitoring system But also with the "four remote'interface andstandard RS232 interface,to meet the power plant automation and power system automation unattended substation requirements.

Altitude:not more than 2000m

Ambient temperature:-5℃~+50℃

Relative humidity:≤90%(20±5℃)

No conductive and explosive dust,no corrosive gas

No severe vibration and impact

Indoor use and wellventilated.

1.Cabinet for the combined structure;

2.Charging,floating charging device using multiple high-trequency rectifier module in parallel,N+1backup,automatic currentsharing;

3.Monitoring functions,high intelligence,using large-screen LCD display,sound and light alarm,or touch screen.Full intelligentdesign,the system of the combination of parts,AC power distribution,rectifier module,DC powersupply to achieve full parameterlocal and remote monitoring,the main monitoring volume:module/switch machine,charging,output voltage regulation,the outputcurrent limit Point setting,automatic exchange of two-way exchange,battery management,etc.;

4.Monitoring systemis equipped wifri standard RS-232 and interface,and the host computer networking,to achieve "four remote'function;

5.Automatic control of the battery and automatic maintenance;to achieve monitoring the terminal voltage of the battery,charge anddischarge current,automatic control are floating charge and regular maintenance are charged;

6.According to user needs can have a temperature compensation function;

7.In any case,when the power grid disconnected,AC power loss,the battery can be uninterrupted power supply to the control busto ensure that power protection,automatic devices,high voltage switchgear have control and operation of power.
