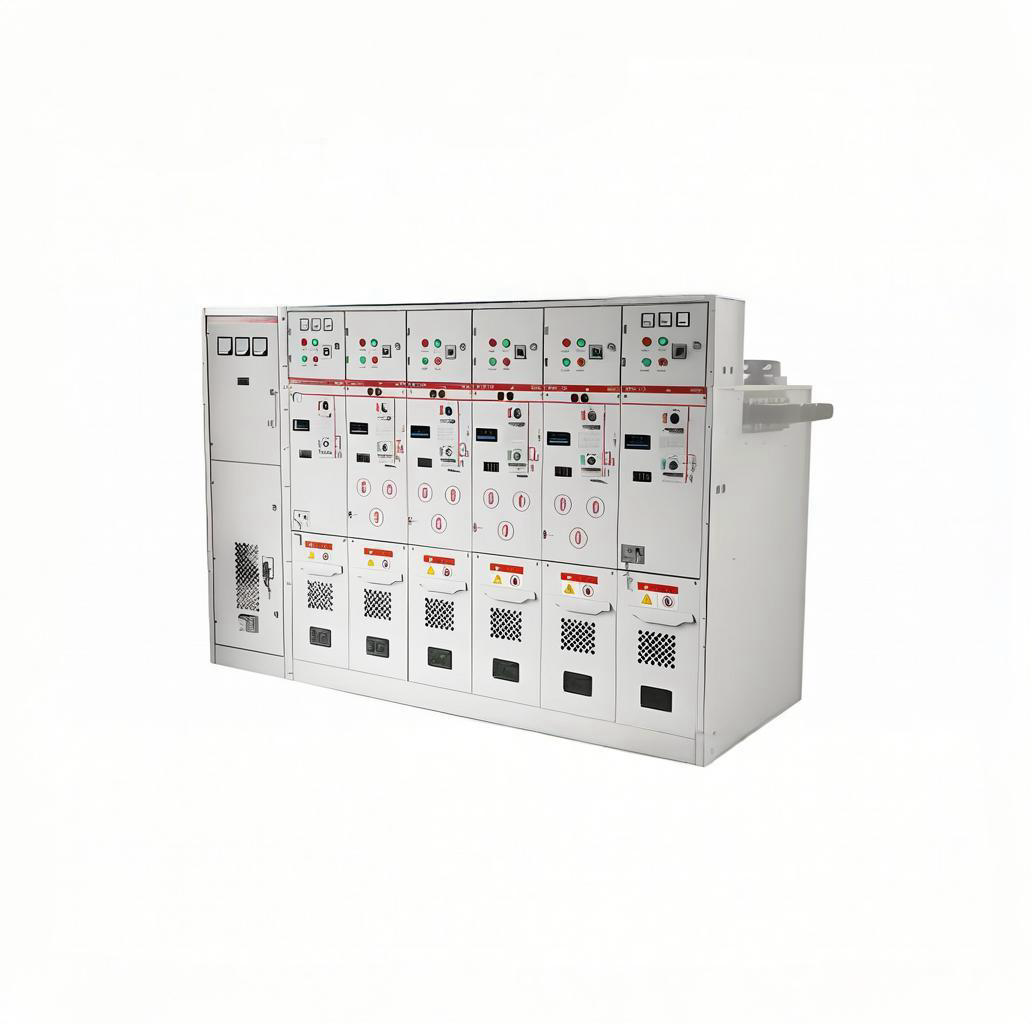

RM6-12 Inflatable(fully enclosed)cireularcabinet

1.The absolute pressure at 20℃ is 1.4bar

2.Annual gas leakage rate of 0.2%%/year

3.Protection grade IP67

4.Air chamber stainless steel thickness 3.0mm

1.Bus bar in switch cabinet 400mmCu

2.Switch cabinet grounding bus 150mm²Cu

1.Front panel of switch cabinet RAL7012

2.Side plate and cable room front cover plate RAL7035

1.The highest temperature is 40℃

2.Minimum temperature:-50℃

3.Take the average relative temperature≤95%

4.Altitude≤2000 meters

GB/T11022 GB3906 GB1985 GB16926 GB38041 GB1984 GB3309EC60056 IEC60129 IEC60256IEC60298 IEC60420 IEC60694

RM6-12 inflatable SF6metal-enclosed fully insulated ring network switch cabinet is widely usedin 10KV/6K power distributionsystem.It is the preferred switch product for all kinds of power distribution systems in urban and rural areas.

The switch cabinet is a modular unit model,which can be combined according to different USES.The combination of fixed unitsand expandable units meet the needs of flexible use of compact switchgear in various substations.

The RM6-12 inflatable switchgear is a fully sealed system with all live parts and switches enclosed in a stainless steel housing.The entire switch device is not affected by externalenvironmental conditions,so as to ensure the reliability of operation and personalsafety,and to achieve maintenance-free.By selecting an extensible bus,any combination can be achieved to achieve full modularity.Extended bus safety insulation and shielding ensure high reliability and safety.RM6-12 inflatable switchgear can also providetv-style automation solution,forming the concept of intelligent switch,and reduce the field installation and debugging workload to aminimum.

The RM6-12 inflatable switchgear cabinet is divided into non-extended standard configuration and expandable standardconfiguration.Because of the combination of full module and half module and its own extensibility,it has very special flexibility.The RM6-12inflatable switch performs GB standard.The design life of operation under indoor conditions(40℃) and outdoorconditions (-50℃) exceeds 30 years.
